IP66 Waterproof Stainless Steel Shear Beam Load Cell Series 1Ton 3Ton 5Ton Weight Sensor for Tank Silo Mounting Module

Series : load cell

Features : Stainless Steel Shear Beam Load Cell module

Mounting Type : Screw installation

Description : Stainless Steel Shear Beam Load Cell module, Stainless Steel Shear Beam Load Cell module

Model Number : SC8323

Type : Load Cell

Place of Origin : Guangdong, China

Brand Name : SNC

Use : PRESSURE SENSOR

Theory : Resistance Sensor

Output : Analog SENSOR

Accuracy : ±0.05%

Actuator Type : Stainless Steel Shear Beam Load Cell module

Voltage - Supply : 5-15VDC

Compensated Temperature : -5~40 degree

Model : Stainless Steel Shear Beam Load Cell module

Capacity : 0-60T

Material : stainless steel

Accuracy class : 0.05% F.S.

rated output : 2+/- 0.2% MV/V

IP grade : IP66 waterproof

Accessory : 17-4 stainless steel mounting module

Application : Tank, silo, mixer, bin weighing system

Warranty : 2 years

Item : load cell with mounting module for silo tank weighing

MOQ : 4 pieces

Price : $105-168/pieces

Contact Now

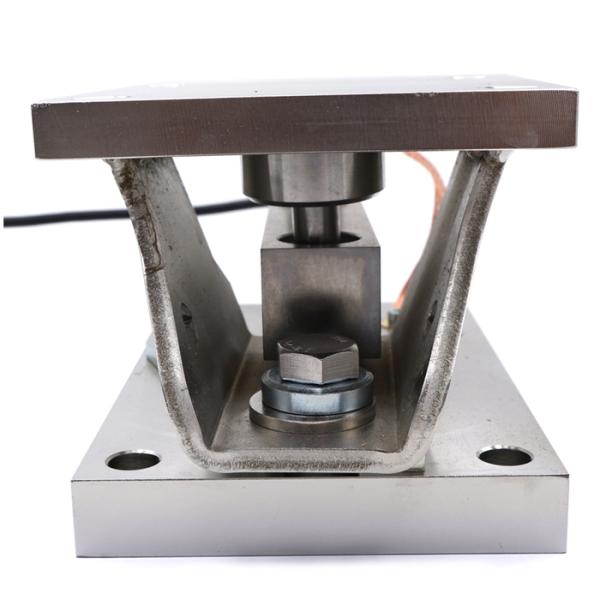

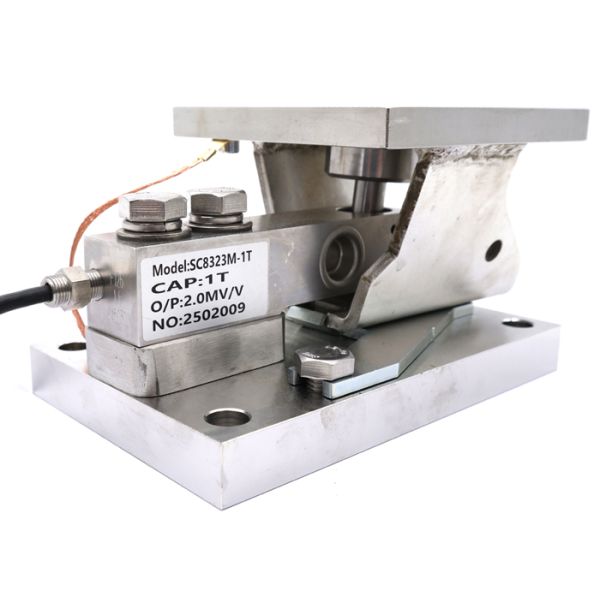

Stainless Steel Shear Beam Load Cell 1Ton 3Ton 5Ton Weight Sensor With Mounting Module for Tank Silo

Product List

Sensorcon Product Lists
Strain Gauge	Load Cell	Torque Sensor	Display
Linear Strain gauge-AA	Wireless sensor	Slip ring rotary torque sensor	Platform scale display
Half bridge strain gauge-BB,HA,GB,FB	Micro load cell	Contactless rotary torque sensor	Truck scale display
Shear/torque strain gauge-AB,HA	Single point load cell	Static torque sensor	Controller
Full bridge strain gauge-EB, FG,FD	Button load cell	Meters	Junction box
Tee Rosettes strain gauge-CA,BA	Shear beam load cell	Coupling	Big screen display
Round type strain gauge	S type load cell		Amplifier
Semi-conductor strain gauge	Column load cell
	Bridge type load cell

Product Description

IP66 Waterproof Stainless Steel Shear Beam Load Cell Series 1Ton 3Ton 5Ton Weight Sensor for Tank Silo Mounting Module

Features:

Model: SC8323M

Safe overload:150%

Material: Stainless steel shear beam load cell with mounting module

Rated load: 0-60 Ton

Apply to: widely used in reactor, ingredient tank,

hopper and material Warehouse, tank, cement mixing station,

chemical medicine, food Industry and other weighing areas.

Parameters:

IP66 Waterproof Stainless Steel Shear Beam Load Cell Series 1Ton 3Ton 5Ton Weight Sensor for Tank Silo Mounting Module

Drawing : mm

IP66 Waterproof Stainless Steel Shear Beam Load Cell Series 1Ton 3Ton 5Ton Weight Sensor for Tank Silo Mounting Module

Why choose us ???

1, We use pure copper wire for shield wire for longer useage and better performance.
2, Our module is made extra thick comparing to standard ones in the market for better support the tank and silo.
3, We have also accessories display, junction box and cable if you need.

Load cell Accessorie

IP66 Waterproof Stainless Steel Shear Beam Load Cell Series 1Ton 3Ton 5Ton Weight Sensor for Tank Silo Mounting Module

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

IP66 Waterproof Stainless Steel Shear Beam Load Cell Series 1Ton 3Ton 5Ton Weight Sensor for Tank Silo Mounting Module

Packaging & Shipping

IP66 Waterproof Stainless Steel Shear Beam Load Cell Series 1Ton 3Ton 5Ton Weight Sensor for Tank Silo Mounting Module

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
